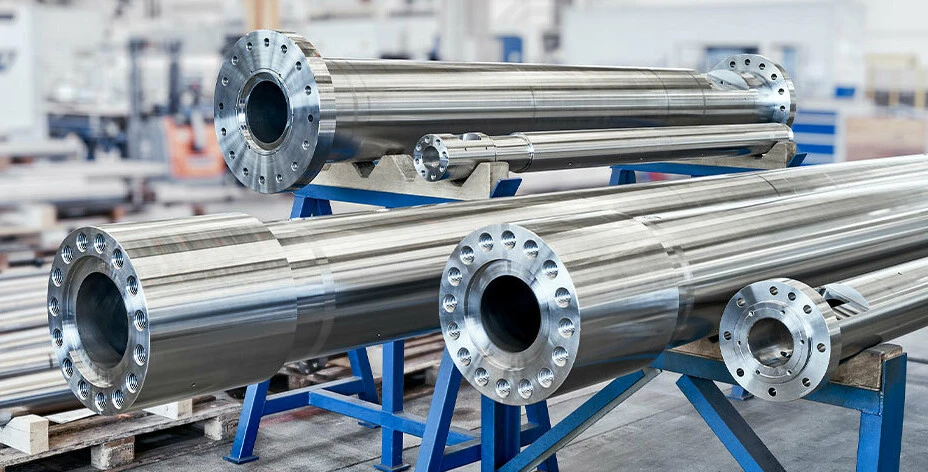

Injection Molding Barrels and Extrusion Barrels
Barrels of consistent quality that provide longer protection for your plasticizing units against adhesion, abrasion, and corrosion, even for processing raw materials that cause intensive wear and tear.
HIGH QUALITY WITH TOP-CLASS WEAR PROTECTION
High Productivity That Is Cost-Effective When Using High Performance Barrels
Reiloy USA offers you bimetallic barrels with wear protection that match your production requirements exactly and allow you to continue production for a longer period of time. At Reiloy you'll find the only bimetallic barrels in the world, made by a single source from raw material to finished product, with in-house powder production, ensuring consistent quality from start to finish.
OUR EXPERTISE
Why choose barrels from Reiloy USA
WHAT WOULD YOU LIKE TO PRODUCE?
Choose Your Reiloy Bimetallic Barrel
Standard Bimetallic
For plastics with a filler content up to 30%
Iron based alloy with primarily solidified chrome carbides, great wear package at an economical price.
raw materials
ABS, ASA, CA, COC, EVA, HDPE, HIPS, LDPE, PA, PBT, PC, PEEK, PEI, PESU, PET, PF, PMMA, POM, PP, PPA, PPS, PPSU, PS, PS transparent, PSU, PVC-C, PVC-P, PVC-U, PVDF, SAN, SB, TPE, TPU
technical data
Injection Reiloy Standard R121
Extrusion Reiloy Standard R121
| Wear resistance | +++ | |
| Corrosion resistance | +++ | |
| Layer thickness | 1.5 mm | |
| Roughness Ra | min. 0.2 – max. 0.8 | |
| Inner diameter | 14 – 400 mm | |
| Outside diameter | max. 600 mm | |
| Length | max. 9,000 mm | |
| Hardness at room temperature | min. 65 HRC | |
| Main alloy component | Cr, Ni, Mo, B | |
| Structural description | Martensitic iron-based alloy with primarily solidified chrome carbides and Carbo-Boride Phases |
Premium Bimetallic
For plastics with a filler content greater than 30%
Nickel Matrix Alloy with Tungsten Carbides with an exceptional corrosion and superior wear resistance.
raw materials
ABS, ASA, EVA, HDPE, HIPS, LDPE, PA, PBT, PEEK, PEI, PESU, PET, POM, PP, PPA, PPS, PPSU, PSU, PVC-C, PVC-P, PVC-U, TPE, TPU
technical data
Injection Reiloy Standard R241
Extrusion Reiloy Standard R241
| Wear resistance | +++++ | |
| Corrosion Resistance | +++++ | |
| Layer thickness | min. 1.0 mm | |
| Roughness Ra | min. 0.3 – max. 0.8 | |
| Inner diameter | 15 – 300 mm | |
| Outside diameter | max. 600 mm | |
| Length | max. 9,000 mm | |
| Hardness at room temperature | min. 59 HRC | |
| Main alloy component | W, Cr, B | |
| Structural description | Dispersive hardening of a highly corrosive resistant Ni-matrix alloy with thermally stable tungsten carbides |
Specialty Bimetallic
Nickel-Cobalt Alloy with Chromium Carbides results in exceptional corrosion resistant package.
raw materials
ABS, ASA, CA, COC, EVA, HDPE, HIPS, LDPE, PA, PBT, PC, PEEK, PEI, PESU, PET, PF, PMMA, POM, PP, PPA, PPS, PPSU, PS, PS transparent, PSU, PVC-C, PVC-P, PVC-U, PVDF, SAN, SB, TPE, TPU
technical data
Injection Reiloy Standard R115
Extrusion Reiloy Standard R115
| Wear resistance | + | |
| Corrosion Resistance | +++++ | |
| Layer thickness | min. 1.5 mm | |
| Roughness Ra | min. 0.2 – max. 0.8 | |
| Inner diameter | 15 – 105 mm | |
| Outside diameter | max. 350 mm | |
| Length | max. 3,000 mm | |
| Hardness at room temperature | min. 55 HRC, Di > 60 mm min. 47 HRC | |
| Main alloy component | Co, Cr, B | |
| Structural description | Nickel-cobalt base alloy with fine precipitation of primary solidified nickel borides and eutectically solidified chromium carbides |
Specialty Wear and High Corrosion Bimetallic
Nickel Matrix alloy with common tungsten carbides providing both a wear as well as high corrosion.
raw materials
ABS, ASA, EVA, HDPE, HIPS, LDPE, PA, PBT, PEEK, PEI, PESU, PET, POM, PP, PPA, PPS, PPSU, PSU, PVC-R, PVC-F, PVC-C, PFA, TPE, TPU
technical data
Injection Reiloy Standard R239
Extrusion Reiloy Standard R239
| Wear resistance | ++++ | |
| Corrosion Resistance | +++++ | |
| Layer thickness | min. 1.0 mm | |
| Roughness Ra | min. 0.2 – max. 0.8 | |
| Inner diameter | 18 – 165 mm | |
| Outside diameter | max. 290 mm | |
| Length | max. 3,000 mm | |
| Hardness at room temperature | min. 58 HRC | |
| Main alloy component | W, Cr, B | |
| Structural description | Dispersive hardening of a highly corrosive resistant Ni-matrix alloy with common tungsten carbides |
KEY DATA AT A GLANCE
Barrels up to 6 Meters Long
| CASTING: Maize, KS | |
| Inside Diameter | 18-90 mm (appr.) |
| Outside Diameter | Up to 230 mm |
| Length | Up to 2400 mm |

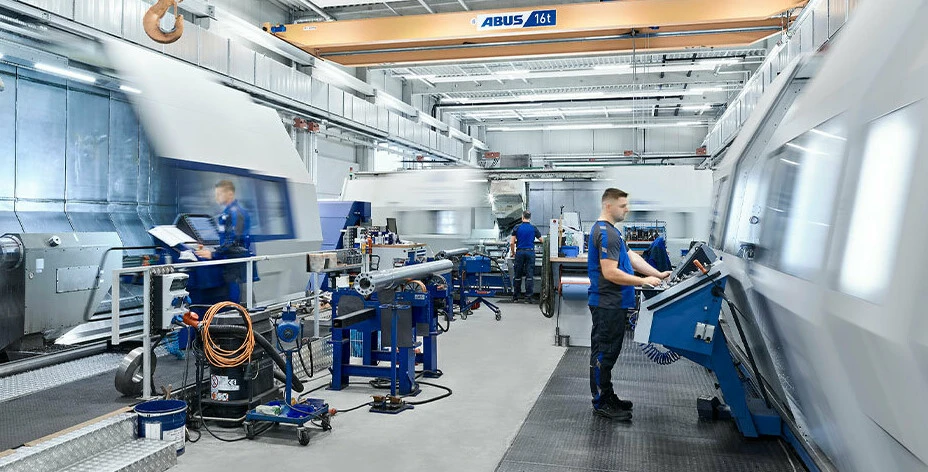

| MACHINING: Maize, KS | |
| Max. Diameter | 430 mm |
| Max. Weight | 4 tons |
| Max. Length | 6000 mm |
NEED ADDITIONAL JUSTIFICATION?
Reiloy Barrels Are:
Highly wear-resistant to meet your toughest applications
Distortion-free

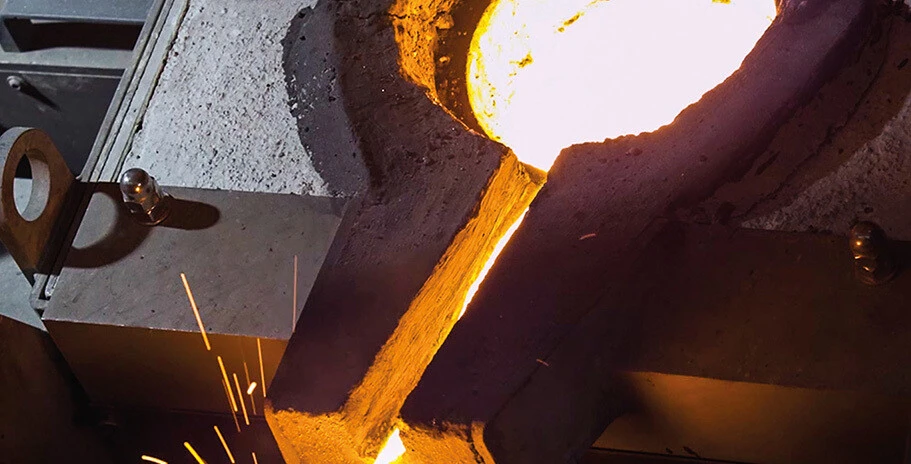

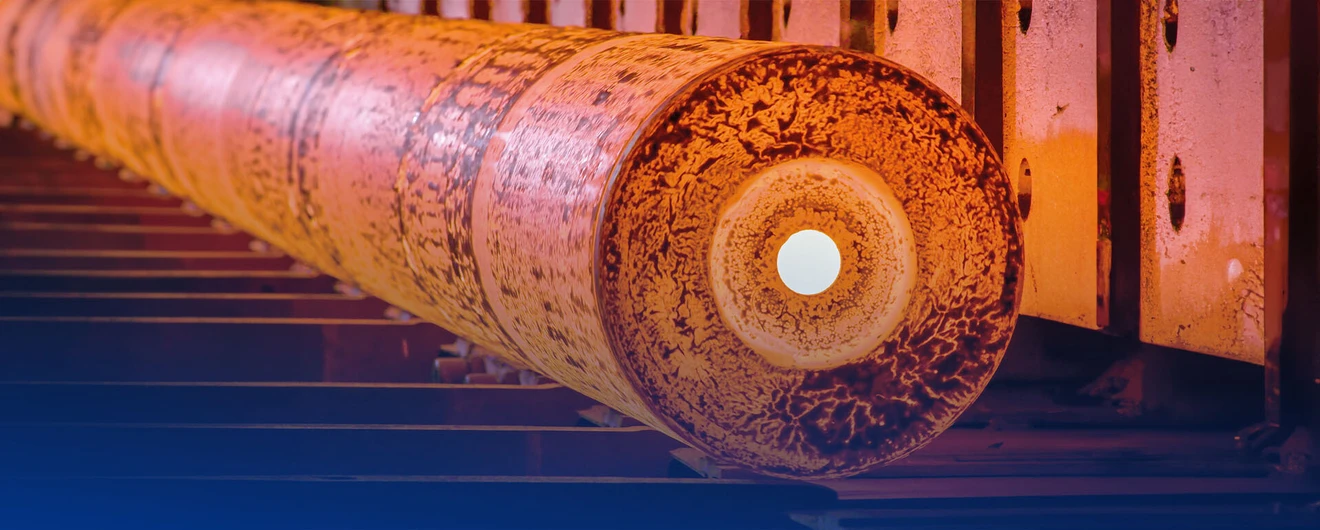

Manufactured on inductive centrifugal casting equipment
Tested under tough operating conditions
Common sized blanks are stocked for timely delivery

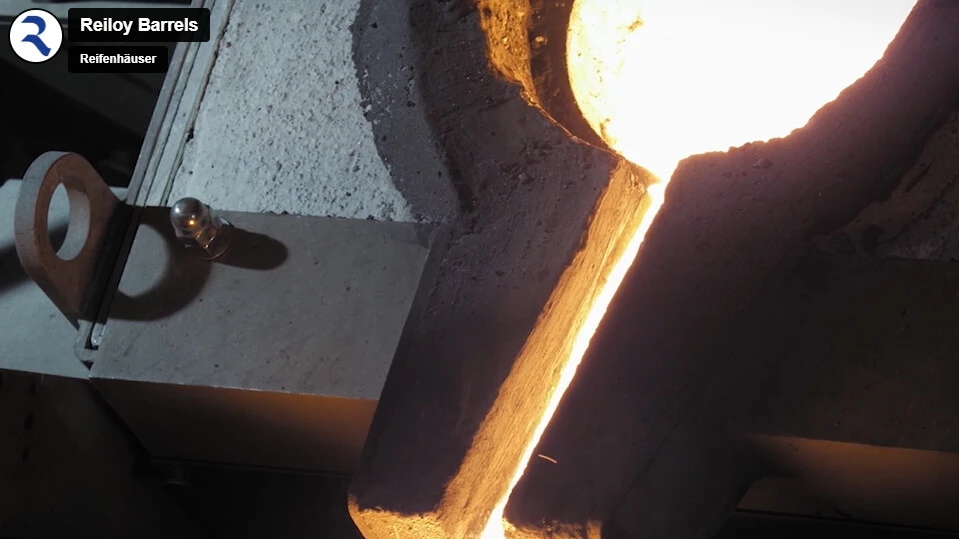

THE WORLD'S ONLY BARRELS FROM A SINGLE SOURCE
Outstanding Wear Protection and Consistent Quality From Powder to End Product
Reiloy Barrels are the world's only barrels made from a single source. We are the only barrel manufacturer that produces our own alloy powders to ensure consistent barrel quality and lasting wear protection that maximizes your productivity and quality.
